Leveler and Straightener

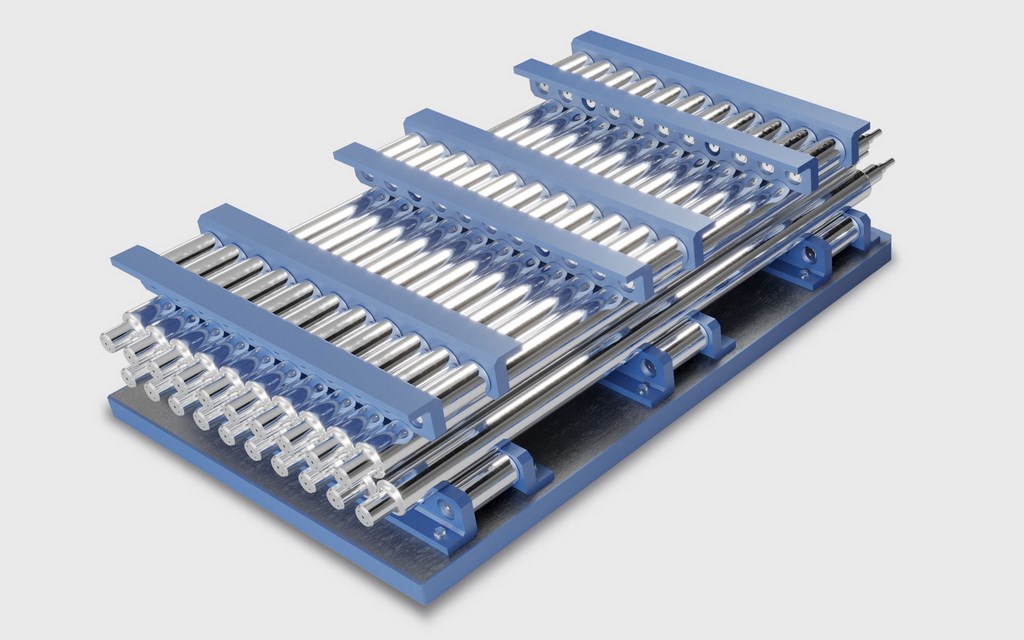

Work and back-up rolls
| Diameters | from 0.80 in. to 12 in. |
|---|---|
| Lenghts | from 40 in. to 160 in. |
| Mainly used steel grades | 86CrMoV7 (W 1.2327) 100Cr6 (W 1.3505) 58CrMoV4 (W 1.7792) 51CrMoV4 (W 1.7701) 50CrMo4 (W 1.7228) 50CrV4 (W 1.8159) |

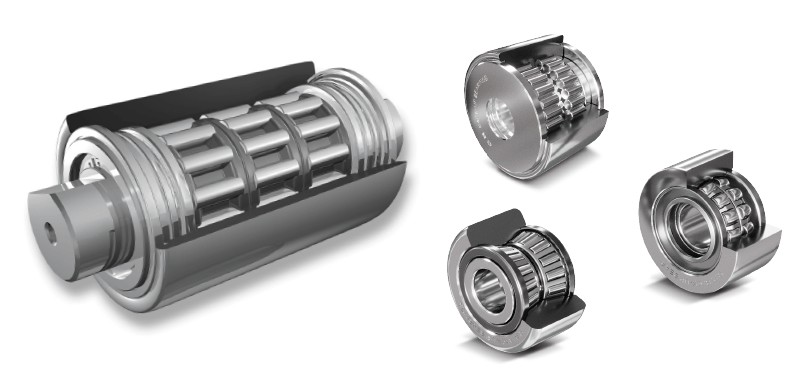

Back-up rollers
Back-up bearings for flattening and cold straightening machines are cylindrical roller bearings with a shaft, and are manufactured in two different styles:
- Full complement of cylindrical rollers
- With roller cages in moulded steel or bronze.
As an alternative, single back-up rollers without shaft, with cylindrical rollers, tapered rollers, or spherical rollers can be provided, mainly when they have to work in heavy duty/load condition.
